Slots

A slot is hal0’s unit of served inference: one named place that runs one model. Behind every slot is a single podman container, and around every slot is a lifecycle the platform manages for you. Slots are what the dispatcher routes to, what the GPU arbiter coordinates, and what capabilities and profiles configure — so they are the central concept in hal0.

One slot, one container

Each slot is backed by a systemd template unit named hal0-slot@<name>.service whose ExecStart runs podman run. That launches exactly one container — hal0-slot-<name> — serving one model on a loopback port. The container runtime defaults to podman; the unit uses --replace so a restart never trips over a stale container name, and publishes its port on 127.0.0.1 only.

The SlotManager owns this. It renders the unit, starts and stops it, tracks state, and registers the running container as an internal upstream so the dispatcher can forward to it. A slot is configured by a small TOML file that supplies the model, context size, and port; the container image and tuned flags come from the slot’s profile.

Note

The container runtime is podman. A docker fallback exists, but podman is the supported path — slot units are generated for it.

Pinning a slot to one GPU

On a multi-GPU host, a slot’s gpu_index (an integer, 0 and up) pins it to a single card instead of the default “all GPUs” behaviour. The env or device mapping it emits is backend-specific:

Device	What gpu_index does
gpu-rocm	Sets HIP_VISIBLE_DEVICES and ROCR_VISIBLE_DEVICES to the index.
gpu-vulkan	Sets GGML_VK_VISIBLE_DEVICES to the index.
gpu-cuda	Maps only that GPU in via CDI (--device nvidia.com/gpu=<n>) and sets CUDA_VISIBLE_DEVICES=0 inside the container, since the CDI mapping already exposes just the one card as ordinal 0.

Leaving gpu_index unset (the default) targets every GPU the backend can see, unchanged from single-GPU behaviour. Any explicit [server].env entry you set still wins over the derived visibility variables — they’re merged underneath, never over.

The lifecycle state machine

A slot moves through an explicit set of states. The SlotState values are also the wire representation streamed to the dashboard, so what you see is a real transition, not a systemd snapshot:

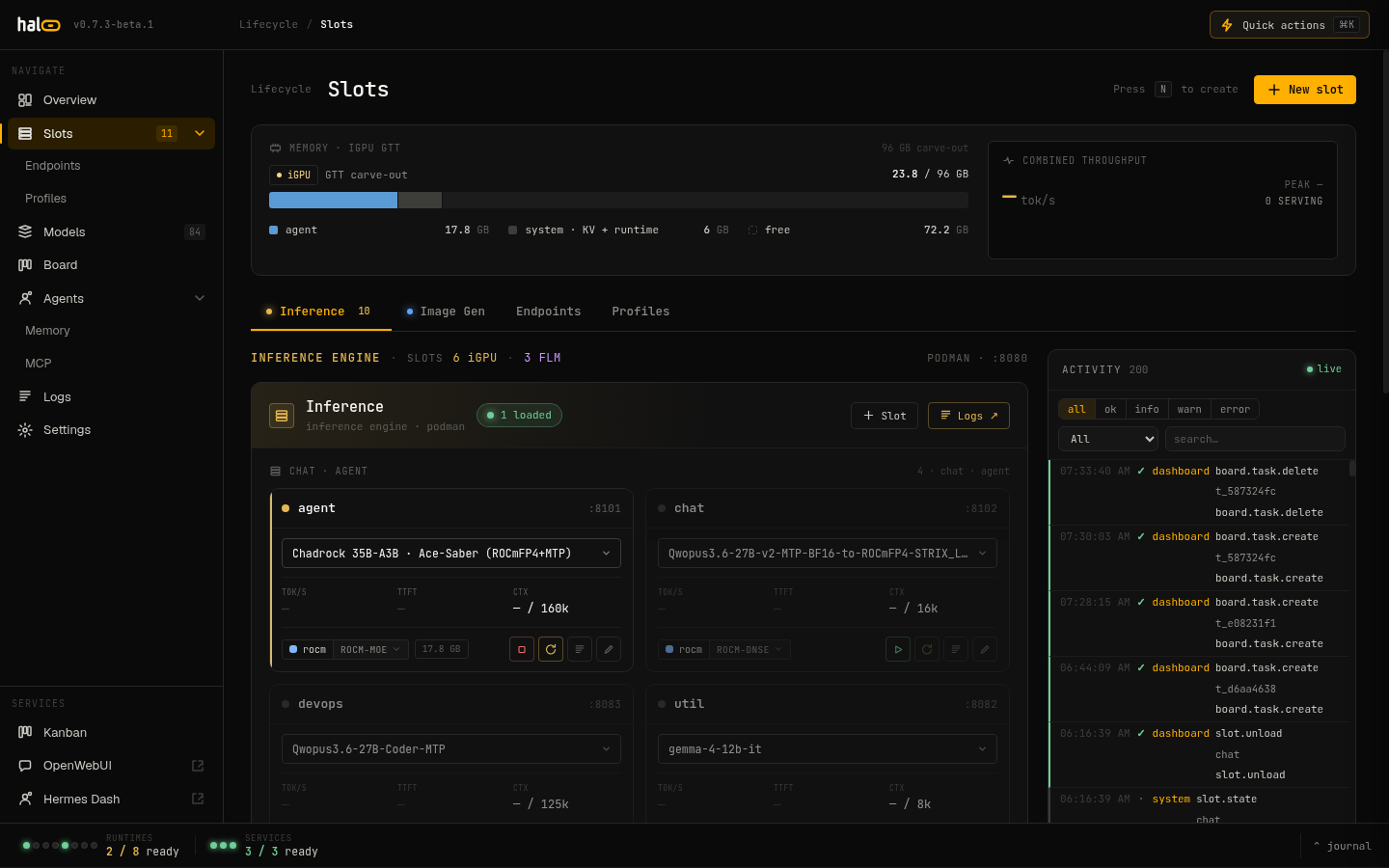

The slot lifecycle transitions visualized.

State	Meaning
offline	Not running; no active unit.
pulling	Model files are downloading or being verified.
starting	The unit has started; waiting for the container to come up.
warming	Container is up; the model is loading into the GPU/GTT pool.
ready	Health probe passed; ready to serve.
serving	A request is actively in flight.
idle	Up but not serving — either warm-but-quiet, or up with no loadable model.
unloading	Graceful shutdown in progress.
error	Failed; details in state.json and the journal.

Transitions are constrained — only legal edges are allowed — and persisted atomically so a dashboard reader never observes a half-written state. The dispatchable “ready set” is ready, serving, and idle: those are the states a request can be routed to. Any other state means the slot is mid-lifecycle, and the dispatcher returns a structured slot.loading 503 with a Retry-After hint rather than failing with a raw connection error.

Tip

idle is two situations the dashboard renders the same way: a slot that was ready but has had no traffic past its idle timeout (a candidate for unload), or a process that started but has no model it can actually serve. Both are distinct from ready so routing never picks a slot that can’t fulfil a request.

Serving and idling

When the dispatcher forwards a request to a slot, it wraps the call in the slot’s serving state: the first concurrent request moves the slot ready/idle → serving, and the last one to finish moves it back to ready. For a streamed response, the slot stays serving until the stream drains. A background idle monitor demotes a quiet ready slot to idle after its idle timeout (300 seconds by default), so the dashboard can distinguish “warm and working” from “warm but quiet.”

Single-flight dispatch

Two safety mechanisms keep concurrent traffic from colliding:

• Per-slot lock. Load, unload, and restart for a given slot serialize behind one lock, so two requests can never race to start or swap the same slot’s container.
• Coalesced prefetch. When the dispatcher needs to fetch a cold upstream’s model list, identical concurrent fetches share a single execution — a hundred simultaneous requests for the same uncached model trigger one upstream call, not a hundred. They all receive the same result (or the same error).

The effect is that a burst of requests for a model that isn’t loaded yet produces exactly one load, and everyone waits on that load rather than starting their own.

Keeping the launch command honest across updates

A slot’s systemd unit bakes its launch argv at load time — updating hal0 changes the code that would render a slot’s command, but not the unit file that already rendered it. Left alone, a slot that was running before an update keeps running the pre-update flags through systemctl restart, crash-restarts, and even reboots, until something forces a fresh render.

hal0 now closes most of that gap automatically: after an update finishes (and during install.sh’s update flow), it re-renders every existing slot’s unit file through current code and issues one daemon-reload. Crucially, it never bounces a running unit to do this — a slot that’s already serving keeps serving on its old argv; the fresh command only takes effect the next time that slot starts, whether that’s a manual restart, a crash-restart, or a reboot. A slot whose fresh render is byte-identical to what’s on disk is skipped as a no-op, and a per-slot render failure is logged and skipped rather than aborting the update.

That still leaves a window — a slot that hasn’t restarted since the update is running old argv and there’s no way to tell just by looking at it. The dashboard closes that window with a resolved-command drift indicator: each slot card compares the container’s actual, live podman inspect argv against a fresh render from current config across the flags that matter most (context size, model, alias, batch/ubatch size) and flags a mismatch. Seeing drift on a slot you haven’t touched is the cue that it’s still running an older command and could use a restart.

The GPU arbiter

The reference hardware has a single iGPU sharing one unified memory pool, so two GPU workloads can’t both hold their weights at once. The GPU arbiter makes that exclusivity explicit. It sorts GPU-backed container slots into two groups — an llm group (GPU chat/embedding slots) and an img group (the ComfyUI image-generation slot) — and only one group may hold the GPU’s memory at a time. NPU and CPU slots are never arbitrated; they don’t contend for the iGPU.

When the GPU is in image mode, the arbiter refuses to dispatch to an llm-group slot: that request gets a structured gpu.image_mode 503 (with a Retry-After) instead of silently failing. The image container itself stays resident — what’s exclusive is the GPU memory, not the container — so switching modes is fast. After the image slot has had no jobs for its configured idle window (idle_restore_minutes, 60 by default; 0 means manual-only), the arbiter frees the diffusion models and restores the LLM slots it had stopped. If the image slot still has an in-flight generation job when the idle window elapses, the restore defers rather than unloading it mid-render — a long video render simply pushes the LLM restore back until it finishes.

Caution

The single NPU LLM anchor is exclusive too, but for a different reason: the AMD XDNA hardware context admits exactly one NPU LLM at a time. hal0 enforces this — enabling a second device=npu chat slot is rejected.

Dedicated embed and rerank lanes

embed and rerank each get their own bench-tuned profile and their own podman container — they are never combined on one llama-server instance. That’s a hard constraint, not a style choice: passing both --embedding and --reranking to the same llama-server yields all-zero scores. Reranking is provisioned as its own slot, internally named embed-rerank, distinct from the embed slot it’s paired with in the capability catalogue.

Both lanes are tuned for how pooled scoring actually works: -ub 8192 matches their batch size because a pooled embedding or rerank pass has to run the whole input in one physical micro-batch — a smaller ubatch truncates or fails on longer inputs. On a gpu-rocm box, the embed and rerank capabilities derive onto these dedicated lanes automatically, whether you’re running the fresh-install picker or reconciling a capability change later; Vulkan and CPU boxes still fall back to the generic vulkan/cpu-llm profile until backend-specific embed/rerank variants ship.

MTP: an Auto / On / Off decision, not a switch

Multi-token prediction (speculative decoding against the model’s own draft heads) is resolved from three independent signals, in this order:

1. Model eligibility — does the model actually ship MTP heads? hal0 checks the registry’s mtp tag or an mtp marker in the model’s id/filename.
2. Profile opt-in — does the slot’s profile enable MTP at all? Only the rocm-dnse and rocm-moe seed profiles do.
3. Slot override — the slot’s own mtp setting, a tri-state: forced On, forced Off, or Auto (the default, shown as the middle position of the dashboard’s Auto/On/Off control in the slot drawer).

An explicit slot override always wins. Left on Auto, MTP only turns on when the profile opts in and the model is actually eligible — so a plain chat model dropped onto an MTP profile no longer launches with dead speculative-decoding flags. Because eligibility now gates Auto, a real MTP-capable model that isn’t tagged and has no name marker won’t speculate until you tag it or force the slot On.

Forcing On for a model that turns out to have no MTP heads is a launch crash waiting to happen (context type MTP requested but model doesn't contain MTP layers), so hal0 defuses that specific combination rather than letting it recur: swapping a forced-on slot onto an ineligible model clears the override back to Auto, and an update sweeps existing slot configs for the same stale combination. A forced Off, or a forced On that’s actually eligible, is left alone either way.

Seeded slots, roles, and aliases

Every install starts with a set of seeded slots so the common capabilities have a home before you create anything:

utility, embed, rerank, stt, tts, img, vision, and agent.

When the NPU runtime (FLM) is present, two more shadow slots are seeded: stt-npu and embed-npu (riding the NPU chat anchor’s own npu slot). Seeded slots are reserved — you can’t create a conflicting name or delete them.

The two canonical LLM roles are agent (the capable default — the dispatch fallback anchor every routing chain ends in) and utility (the cheap helper, seeded on every install so tasks like memory extraction always have a cheap local model to target). chat and primary are retired as slot/role names — the chat capability itself is unaffected, since any type: llm slot can serve it.

Each slot carries a type (llm, embedding, reranking, transcription, tts, or image) and a device preference (gpu-rocm, gpu-vulkan, gpu-cuda, cpu, or npu — gpu-cuda is the experimental path for non-Strix-Halo NVIDIA hosts). hal0 keeps one back-compat alias so older callers keep working: agent-hermes resolves to agent. Aliases are never written to disk and never appear in slot listings — they’re a transparent translation at dispatch time.

Addressing a slot by its name (e.g. model: "agent") is the stable way to pin a co-resident model: the name doesn’t change when you swap the underlying model file. hal0 also advertises three virtual model names that resolve to whichever slot is actually loaded — hal0/agent, hal0/utility, and hal0/npu — and generalizes the pattern to any enabled type: llm slot: a custom slot named research is addressable as hal0/research even though it isn’t one of the three advertised names.

Stacks — declarative slot bundles

A stack is a preconfigured slot + profile + model bundle you can apply atomically: activate a “Daily driver” (chat + voice + image) in one move, and hal0 reconciles the running slots to match. Stacks carry the same portable export / import envelope as profiles, so you can snapshot a working layout and move it to another box. Missing models are flagged before you apply. See Stacks for the full model — the TOML shape, apply semantics, and the portable export/import envelope.
