Devices, providers & profiles

A hal0 slot is described by three orthogonal facts: a device (the hardware preference), a provider (the inference runtime label), and a profile (a reusable container template — image plus bench-tuned flags). This page is the authoritative reference for the valid values of each and how they connect.

device, not backend

The legacy backend field is deprecated and accepted for one migration release only. Author every slot with device. A slot TOML that sets backend without device logs a deprecation warning and auto-fills device. (The legacy enum also accepts cuda now, so a gpu-cuda device round-trips through the same one-release write-back as every other device.)

Devices

device carries hardware intent only. It is validated at config-load time — a typo raises a ValidationError with the field path.

device	Hardware	Default provider
gpu-rocm	AMD GPU via ROCm	llama-server
gpu-vulkan	Any GPU via Vulkan	llama-server
gpu-cuda	NVIDIA GPU via CUDA — experimental	llama-server
cpu	CPU-only fallback	llama-server
npu	AMD XDNA NPU via FastFlowLM	flm

gpu-rocm is the package-level default device constant, but the hardware recommender actively steers Strix Halo (unified memory) installs to gpu-vulkan for broader compatibility. On an NVIDIA host the recommender picks gpu-cuda when nvidia-container-toolkit (CDI) is present, and falls back to gpu-vulkan otherwise. The recommender may also select cpu or npu on hosts without ROCm support.

Note

This page, the dashboard, and the API all draw from one canonical device/ backend taxonomy, served live at GET /api/meta/enums (devices, legacy backends, selectable backends, device classes, capabilities, and the device→default-profile map). If this page and a running host ever disagree, /api/meta/enums is the source of truth.

Multi-GPU hosts

hal0’s hardware probe enumerates every detected GPU (index + PCI bus id), additively for both AMD and NVIDIA parts. A slot can pin to one GPU via the gpu_index field, which emits the backend-appropriate visibility mechanism: HIP_VISIBLE_DEVICES + ROCR_VISIBLE_DEVICES for gpu-rocm, GGML_VK_VISIBLE_DEVICES for gpu-vulkan, or a CDI nvidia.com/gpu=<n> device plus CUDA_VISIBLE_DEVICES=0 inside the container for gpu-cuda. An explicit [server].env entry always wins over the derived visibility var. Leaving gpu_index unset (the default) exposes all GPUs — unchanged behaviour.

Providers

provider is the runtime label round-tripped on each slot. Every slot runs as a podman container regardless of provider; the field exists for UI labels and backwards compatibility.

provider	Runtime	Typical slot types
llama-server	llama.cpp server (ROCm / Vulkan / CUDA / CPU)	chat, embed, rerank
flm	FastFlowLM on the NPU	chat / stt / embed (one process, trio)
kokoro	Kokoro-82M text-to-speech (ONNX, CPU)	tts
qwen3tts	Qwen3-TTS-12Hz-1.7B multilingual TTS (ROCm, GPU)	tts
comfyui	ComfyUI image generation	image

Seed profiles

Profiles live in /etc/hal0/profiles.toml. When that file is absent, hal0 serves the built-in seed catalog below, so GET /api/profiles is always populated on a fresh install. A profile supplies the container image, the bench-tuned flag bundle, and an optional MTP toggle; the slot supplies the model, context size, and port.

Profile	device_class	Image	MTP	Intent
rocm	gpu	ghcr.io/hal0ai/amd-strix-halo-toolboxes:rocm-7.2.4-rocmfp4-server	off	MoE agents · q8 KV
rocm-dnse	gpu	ghcr.io/hal0ai/amd-strix-halo-toolboxes:rocm-7.2.4-rocmfp4-server	on	Dense + MTP · q8 KV
rocm-moe	gpu	ghcr.io/hal0ai/amd-strix-halo-toolboxes:rocm-7.2.4-rocmfp4-server	on	MoE + MTP · q8 KV
vulkan	gpu	ghcr.io/hal0ai/amd-strix-halo-toolboxes:vulkan-radv-server	off	Vulkan std · fallback
cuda	gpu	ghcr.io/ggml-org/llama.cpp:server-cuda	off	CUDA · NVIDIA (upstream llama.cpp, experimental)
embed	gpu	ghcr.io/hal0ai/amd-strix-halo-toolboxes:rocm-7.2.4-rocmfp4-server	off	Embeddings · GPU
rerank	gpu	ghcr.io/hal0ai/amd-strix-halo-toolboxes:rocm-7.2.4-rocmfp4-server	off	Reranking · GPU
tts-qwen3	gpu	ghcr.io/hal0ai/hal0-toolbox-qwen3tts:v1	off	TTS · Qwen3 (multilingual GPU)
flm	npu	ghcr.io/hal0ai/hal0-toolbox-flm:0.9.43	off	FLM NPU inference
tts	cpu	ghcr.io/hal0ai/hal0-toolbox-kokoro:v1	off	TTS · Kokoro
cpu-llm	cpu	ghcr.io/hal0ai/amd-strix-halo-toolboxes:vulkan-radv-server (no GPU passthrough)	off	CPU-only LLM · llama-server
comfyui	img	docker.io/kyuz0/amd-strix-halo-comfyui@sha256:0066678ae9043f69…	off	Image generation

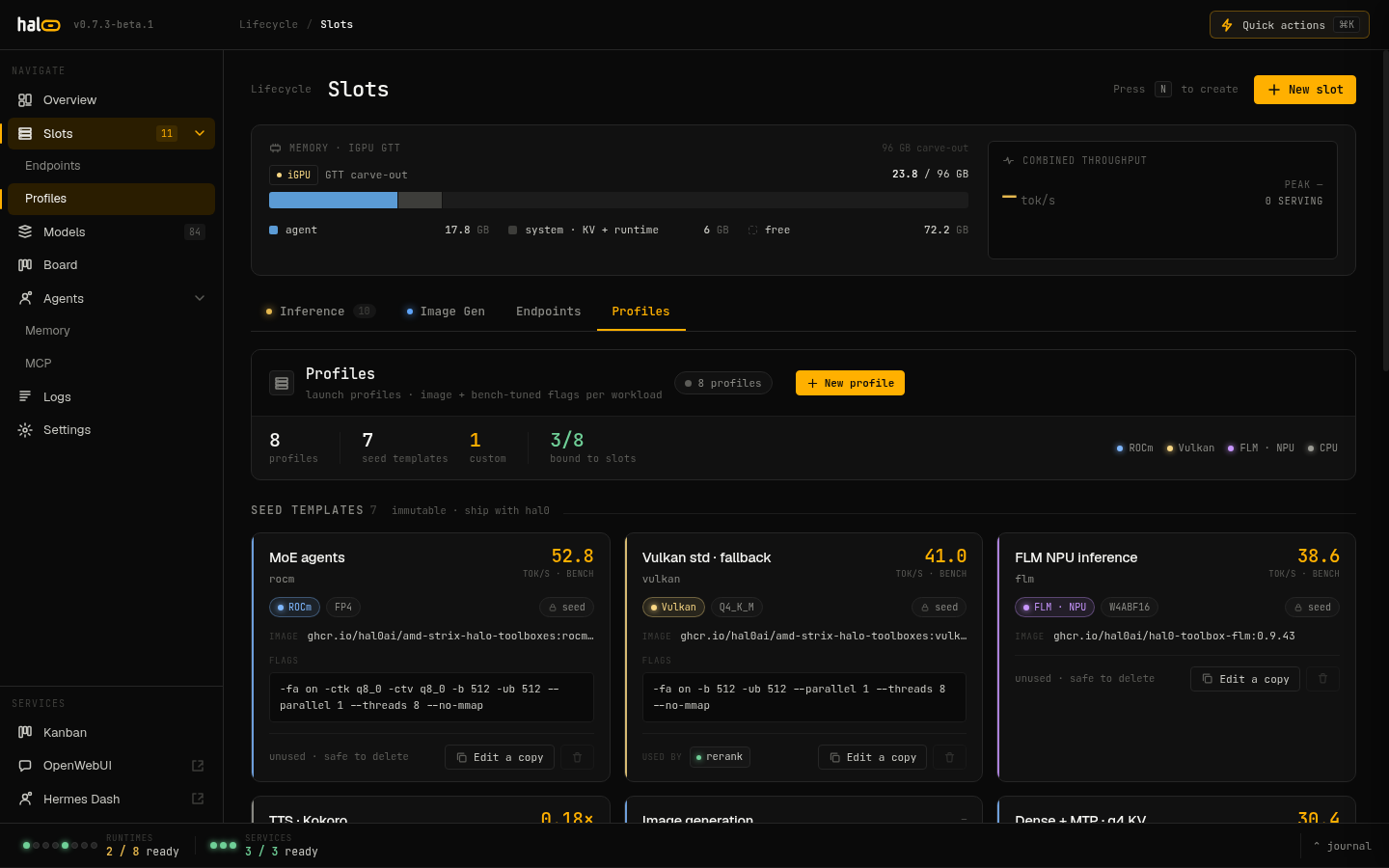

Profiles tab in the hal0 dashboard — seed profile cards display device class, quantisation, and bench throughput (tokens/sec or RTF).

The embed and rerank profiles bake in the llama-server serving flags (--embedding / --reranking, -ub 8192 so a full input fits one physical batch) so an embedding or reranking slot no longer has to hand-wire them in extra_args. On a gpu-rocm box, embed/rerank slots derive onto these lanes automatically; a Vulkan or CPU box falls back to the vulkan / cpu-llm profile until backend-specific embed/rerank variants ship.

Note

GPU profiles also carry a backend field (rocm, vulkan, or cuda) — that field, not the slug, is the authoritative ROCm-vs-Vulkan-vs-CUDA choice. Non-GPU profiles (flm, tts, cpu-llm, comfyui) omit it and let device_class drive display. Canonical image refs are pinned per release in manifest.json and may differ from these seed defaults.

`cuda` is experimental

The cuda profile runs the upstream ghcr.io/ggml-org/llama.cpp:server-cuda image — not one of the AMD Strix Halo toolboxes — and needs nvidia-container-toolkit (CDI) on the host for GPU passthrough. It has no PROFILE_BENCH entry (unbenched) and isn’t part of the Strix Halo–tuned profile family; it exists so NVIDIA hosts have a working gpu-cuda path. See Hardware matrix for the current support level.

Seeds are virtual

Seed profiles live in code (SEED_PROFILES) and are overlaid on every load — they are never materialised into /etc/hal0/profiles.toml. That means a re-tuned seed (new flags, a bumped toolbox image) reaches every install on upgrade instead of being frozen by a stale on-disk copy. The file holds only your own (non-seed) profiles; seed profiles are immutable, so to customise one you clone it under a new name.

The old `rocm-mtp` slug

An earlier single rocm-mtp profile was split into rocm-dnse and rocm-moe (MTP is now the per-slot/per-profile mtp field). rocm itself is not retired — it’s a live seed profile and the default for gpu-rocm. There is no loader remap, so a slot TOML pointing at a slug that no longer exists should be repointed to one of the current profiles.

MTP flag bundle

A slot’s mtp field is a tri-state: true forces MTP on, false forces it off, and unset (Auto) defers to the profile. Under Auto, MTP is effective only when both the profile opts in (mtp = true — only rocm-dnse and rocm-moe do among the seeds) and the model is MTP-eligible (a registry mtp tag, or an mtp marker in the model’s id/filename). A profile opting in no longer means “always append the spec-draft bundle” — a non-MTP model sitting on rocm-moe under Auto launches clean, without dead --spec-draft-* flags. See Capabilities and profiles for the full model/profile/slot resolution.

Whenever the effective setting is on, resolve_profile_flags merges the multi-token-prediction draft-speculation flag bundle (MTP_FLAG_BUNDLE) into the profile’s flags — as defaults only. A profile’s own explicit --spec-draft-* flags win; the bundle just fills in whatever the profile left unset. Before v0.8.2b2 (#963) the bundle was appended verbatim and silently clobbered a profile’s pinned spec-draft flags (e.g. a profile asking for --spec-draft-type-k f16 still launched with the bundle’s q8_0) — that’s fixed now. The bundle’s draft device also tracks the profile’s own backend (ROCm0 / Vulkan0 / CUDA0) instead of a hardcoded ROCm0.

Forcing MTP on an ineligible model

An explicit mtp = true pointed at a model with no MTP heads makes llama-server refuse to start (“context type MTP requested but model doesn’t contain MTP layers”). Two independent guards defuse exactly that combination: an update-time migration clears a stale forced-on override left on an ineligible model, and a swap-time guard clears it if a model swap lands an ineligible model on a slot still forced On. Both leave force-off and eligible force-on alone — only unresolvable-ineligible force-on is cleared.

Device-to-default-profile map

The create-slot device picker and legacy-slot migration use this map to choose a starting profile per device class:

device	Default profile
gpu-rocm	rocm
gpu-vulkan	vulkan
gpu-cuda	cuda
cpu	cpu-llm
npu	flm

Note

cpu’s default profile is cpu-llm, not tts — an earlier map pointed cpu at tts, which left a profile="" slot unloadable (“profile ” not found”). cpu-llm runs the Vulkan toolbox image in CPU-only mode (no GPU devices passed to the container).

Model preferred profile

A registry model can also carry a preferred profile via defaults.profile. A slot adopts it on create (when the slot has no explicit profile) and on every model swap — but only when the profile fits the slot: it must exist in the catalog, support the slot’s type, and match the slot’s device_class/backend. An incompatible preference is skipped (logged as slot.preferred_profile_skipped) and the slot keeps its current or device-default profile; hal0 never flips a slot’s device to satisfy a model’s preference.

Portable profiles: export/import

A profile can be exported to a self-contained, checksummed .hal0profile.json envelope and imported on another host — the same sharing model stacks use (no secrets, no host paths, an independent schema_version).

• GET /api/profiles/{name} — resolve a single profile.
• POST /api/profiles/{name}/export — build the envelope: {kind: "hal0.profile", schema_version, hal0_version, exported_at, name, checksum, profile}. checksum is a sha256 over the canonical profile body only (key-order independent), so re-exporting an unchanged profile yields the same checksum every time.
• POST /api/profiles/import — dry-run then commit. {"envelope": {...}, "name": "...", "dry_run": true} validates the envelope + checksum and reports whether name collides with an existing profile, without creating anything. A commit (dry_run false, name set) creates the profile and returns 409 profiles.exists on a name collision.

MCP mirrors the same surface: profile_list / profile_status / profile_export are read-shaped (autonomous, no confirmation gate); profile_import / profile_delete are gated. The dashboard’s Profiles tab has an Export button on every profile card and an Import dialog (file → dry-run → commit) in the tab header.

Toolbox images

Toolbox images are pinned per hal0 release in manifest.json (by short name → canonical ref plus a sha256 digest). They are public on ghcr.io/hal0ai/; the installer pulls them anonymously. An empty digest means the image is unpublished for that release and the runtime pulls by tag with a warning.

Short name	Image ref (current release)	Notes
vulkan	ghcr.io/hal0ai/amd-strix-halo-toolboxes:vulkan-radv-server	llama.cpp Vulkan backend
rocm	ghcr.io/hal0ai/amd-strix-halo-toolboxes:rocm-7.2.4-rocmfp4-server	llama.cpp ROCm backend
flm	ghcr.io/hal0ai/hal0-toolbox-flm:0.9.43	FastFlowLM on AMD XDNA2 NPU
kokoro	ghcr.io/hal0ai/hal0-toolbox-kokoro:v1	Kokoro-82M TTS (CPU ONNX)
qwen3tts	ghcr.io/hal0ai/hal0-toolbox-qwen3tts:v1	Qwen3-TTS-12Hz-1.7B multilingual TTS (ROCm)
comfyui	docker.io/kyuz0/amd-strix-halo-comfyui@sha256:0066678ae9043f69a1c8c7699e70626ceffd35c1a8ca03227a05640ad0241ed2	ComfyUI image generation

See also

• Hardware matrix — what runs on each device and the backend availability order.
• Config schema — the full slot TOML, profile, and hal0.toml field reference.
• Paths & files — where profiles.toml, slot TOMLs, and manifest.json live.
