Companion services

hal0 sits next to a handful of companion services — a chat UI, an image-gen engine, a bundled agent, a memory engine — each with its own systemd unit, port, and health story. The companion-service management layer gives these one declarative registry, one API surface, and one dashboard page, instead of the ad-hoc systemctl calls and per-feature status cards each service used to grow independently.

The registry

Every companion service is one entry in a declarative catalog (hal0.services.registry). Each entry carries: the owning systemd unit (or None for an unmanaged/external service), the LAN port for a host:port URL fallback, an env var for an operator-declared public URL, a probe strategy, the lifecycle verbs the API is allowed to run, and whether the service is advertised over mDNS.

The current catalog:

Service	Unit	Port	Actions	Notes
OpenWebUI	`hal0-openwebui.service`	`:3001` (LAN)	start/stop/restart/enable/disable	Podman container; HTTP-probed at `/health`.
ComfyUI	`hal0-slot@img.service`	`:8188` (LAN)	restart only	Start/stop is GPU-arbiter managed — the img slot unit owns the switchover logic, so only `restart` is exposed (the same verb the FirstRun repair button uses).
Hermes	`hal0-agent@hermes.service`	`:9119` (loopback only)	start/stop/restart/enable/disable	Bundled agent + dashboard. No LAN URL fallback — a link is shown only when `HAL0_HERMES_PUBLIC_URL` is set.
Hindsight	`hindsight-api.service`	`:9177` (loopback only)	start/stop/restart/enable/disable	Native memory-engine daemon. Same no-fallback-URL rule as Hermes.
n8n	(none — external)	—	read-only	Workflow automation the operator runs themselves; hal0 does not deploy it. Listed with URL/probe env hooks but carries no lifecycle actions until a unit exists.

Every lifecycle verb (start, stop, restart, enable, disable) is enforced twice: once against the per-service allow-list in the registry, and again at the execution boundary in hal0.services.systemd — a crafted request can never reach an arbitrary systemctl verb, and a service like ComfyUI can never be stopped or started through this surface even if the route is called directly.

Dashboard: Services page

The dashboard has a top-level Services nav item (hash route #services) showing:

A discovery (mDNS) card with an announce/withdraw toggle for addon advertisement.
One card per registered service: status pill, systemd uptime, unit metadata, an “open” button for the browser-facing URL, registry-driven lifecycle buttons (a stop action asks for confirmation first), a journald logs drawer (reusing GET /api/logs?unit=), and — for ComfyUI — the shared live-queue drawer.

Every probe is fail-soft: a probe or systemd failure degrades to an honest “unknown”/down state, never a fabricated “up” and never a 500. Older backends without this surface show “source pending” rather than breaking the page.

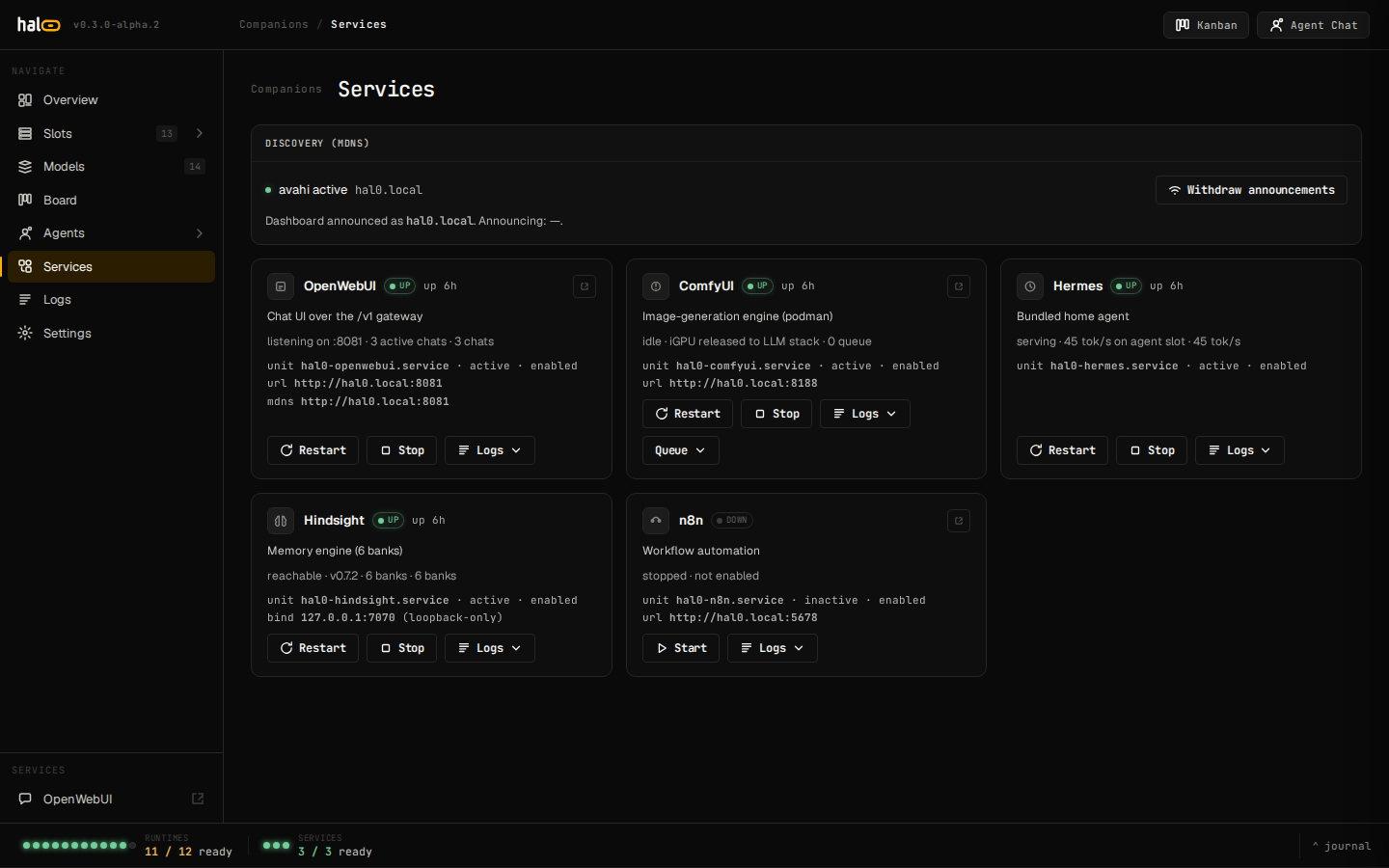

The Services page listing companion apps — Open WebUI, ComfyUI, Hermes, Hindsight, and n8n — with health status, unit state, URLs, and lifecycle actions

mDNS discovery

hal0’s installer already advertises the main dashboard as hal0.service under /etc/avahi/services. The companion-service layer extends that with one addon announcement per advertised service: hal0-addon-<id>.service, so LAN clients see distinct entries like “OpenWebUI on <host>” / “ComfyUI on <host>” and can reach each one at http://<host>.local:<port> without DNS.

Key properties:

Only services with mdns=True in the registry and a LAN port are advertisable — that’s OpenWebUI and ComfyUI today. Loopback-only services (Hermes, Hindsight) and the external n8n entry are never advertised.
Advertising writes an avahi service-group XML file per service; withdrawing removes every hal0-addon-* file. avahi-daemon inotify-watches the directory, so changes take effect immediately — no daemon reload, no systemctl call.
The installer-owned hal0.service file is never touched by this layer.
available in the discovery status reflects whether avahi-daemon.service is actually active — not a guess from binary presence.
HAL0_HOSTNAME (set by the install wizard) wins over the raw system hostname when deriving the .local name shown to operators.

The `/api/services` surface

Method & path	Purpose
`GET /api/services`	Full per-service detail: probe state, systemd unit state + uptime, browser URL, mDNS URL, and the permitted `actions` list. Never 500s — every probe/systemd failure degrades to an honest unknown.
`POST /api/services/{id}/action`	Run one lifecycle verb (`start`/`stop`/`restart`/`enable`/`disable`) against a service’s unit. Body: `{"action": "..."}`. Rejected with `400 services.action_not_allowed` if the verb isn’t in that service’s allow-list, or `404 services.unknown` for an unrecognized id. Audit-logged via the shared action-recording facility.
`GET /api/services/mdns`	avahi/mDNS discovery status (`available`, `hostname`, `advertised`) plus the list of `advertisable` services.
`POST /api/services/mdns`	Advertise (`{"advertise": true}`) or withdraw (`{"advertise": false}`) the addon mDNS announcements. Audit-logged.

This is the richer sibling of the pre-existing GET /api/services/health aggregator, which keeps its own stable read-only contract for the dashboard Overview card — the two share probe implementations under the hood, so health numbers stay consistent between the Overview card and the dedicated Services page.

Per-service logs reuse the existing generic journald surface (GET /api/logs?unit=<unit>) — each entry in GET /api/services carries its unit name so the UI can wire a logs drawer without a dedicated endpoint.
